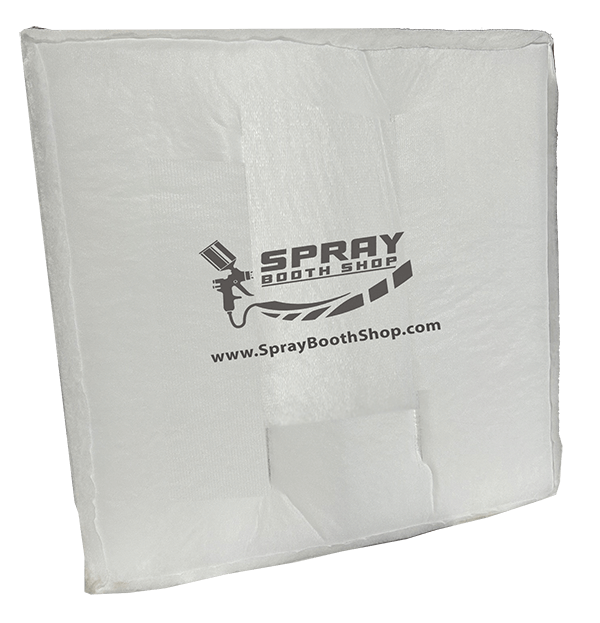

Intake Panel Filters
Panel intake filters contain an integrated metal framework to give the polyester rigidity and to hold it in the mounting frame of the paint booth. Panel filters come in different styles and materials depending on the type of paint booth you have.

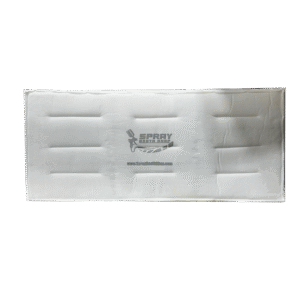

Downdraft Style Paint Booths can use pad filters that are normally white in color and are located in the ceiling. Downdraft Intake filter pad, sometimes referred to as an R-1 or AFR-1 filter can be many sizes but are most commonly between 20” and 25”. These style of filter is 95%+ efficient.
Crossdraft Style Paint Booths typically have pads or panels located in the doors of the booth or on a wall. This style of filter is normally 2-ply and they are green in color. These require changing more frequently as they ae not as thick and many times the air is shop air that can have filler dust and extra dirt compared to outside air. A 2-ply filter averages around 75% efficiency.
Intake Panel Filters: Essential for Clean Airflow
Intake panel filters are designed with an integrated metal framework to provide rigidity and ensure a secure fit within a paint booth’s mounting frame. These filters come in several styles and materials, tailored to different paint booth configurations.
Downdraft Style Paint Booths
- Use pad filters, typically white in color, installed in the ceiling.
- Commonly referred to as R-1 or AFR-1 filters.
- Available in several sizes, typically ranging from 20” to 25”.
- Provide 95%+ filtration efficiency, ensuring clean, contaminant-free airflow.
Crossdraft Style Paint Booths
- Feature pads or panels located in the doors or on a wall.
- Typically white, 2-ply filters with a fabric of mesh surface that require more frequent replacement.
- Less dense than downdraft filters, making them more prone to contamination.
- Offer approximately 75% filtration efficiency, as they often filter shop air, which contains dust and debris.
When to Replace Your Intake Panel Filters
Regular replacement is necessary to maintain optimal airflow and paint quality:
- Downdraft booth filters last longer due to cleaner intake air.
- Crossdraft booth filters require more frequent changes due to exposure to shop air contaminants.
