Your Step-by-Step Guide: Installing a New Paint Booth Filter Flawlessly

Installing a New Paint Booth Filter for Flawless Results

A flawless finish starts with clean, stable airflow. Your filters are the control point for that airflow, keeping dust out and capturing overspray before it harms quality. When filters are clean and correctly installed, flash times are predictable, film build is consistent, and defects drop. Poor fit or loaded media shifts pressure and creates turbulence, which shows up as nibs, texture issues, and rework.

Function of Paint Booth Filters in Quality Control

Filters are your barrier against contamination. They stop dust and debris at the intake and trap overspray at the exhaust, so it doesn’t recirculate. With the right media installed correctly, you maintain laminar flow, which helps paint lay down evenly. That reduces buffing, cut-and-polish time, and costly resprays. In short, filters protect both finish quality and throughput.

Flawless Install for Protects Paint & Equipment

Even a small crease, gap, or reversed panel invites dirty air to bypass the media. That bypass shows up as dirt nibs, poor adhesion, and uneven drying. Misfit filters also force your fan motors and burners to work harder because static pressure climbs. Over time, that shortens equipment life and increases energy use. A careful, repeatable install prevents these problems before they start.

Understanding Your Paint Booth’s Filtration Ecosystem

Your booth relies on a staged system, consisting of pre-filters, intake/ceiling diffusion media, and exhaust capture, along with optional secondary stages. Each piece has a job, and they work together. When one stage is wrong or overdue, the whole system drifts. The result is unstable airflow and finish defects that are hard to diagnose. Knowing what each stage does helps you pick the right media and change at the right time.

The Different Types of Filters and Primary Functions

Pre-filters sit ahead of the intake media and capture larger dust particles, extending the life of more expensive stages. Intake or ceiling filters clean and diffuse the supply air so it reaches the work area evenly. Door or face panels (R1/green tacky) are standard on crossdraft or non-heated booths and serve as intake stages as well. Exhaust filters capture overspray so it doesn’t coat ductwork or exit the stack. Some shops add secondary exhaust stages, like bags or carbon, when regulations or odor control require it.

Common Filter Media: Materials and Applications

Fiberglass pads and rolls are cost-effective for overspray capture at exhaust banks. Polyester pads and rolls offer higher holding capacity and finer capture, which helps when spraying heavy primers or high-solids coatings.  Bag filters provide deep-bed capture at pre/secondary stages in dusty environments. Activated carbon is for odor/VOC reduction and always goes after particulate stages, not in place of them.

How Filters Fit Your Paint Booth & Vent System

Crossdraft booths bring air through doors or front intakes and exhaust at the rear, so door panels and rear pad banks must fit tightly. Semi-down and side-draft booths supply air through Ceiling Blankets and exhaust along the side or rear walls, making the seam quality of the ceiling blankets important. Full downdraft booths rely on ceiling diffusion and floor pit capture; any gaps at the ceiling or empty cells at the floor will disturb flow. Your frames, clips, and gaskets are designed for specific media thicknesses—match them. If you change media type, confirm the starting pressure drop won’t choke the system.

The Impact of Filter Condition

The filter condition controls airflow, which in turn controls finish quality and equipment stress. As filters load, pressure rises and velocity shifts, creating turbulence and uneven draw. That encourages dirt to settle on panels and reduces transfer efficiency. Misfit media can do the same thing on day one. Precision at install keeps the booth predictable from job to job.

Protecting Your Paint Job Quality

Clean, correctly seated media blocks fine dust before it can land on wet coatings. It also keeps flow smooth so overspray moves toward the exhaust instead of swirling back. With stable airflow, flash is evenly distributed across the vehicle or part, which helps achieve a smooth gloss and texture. You’ll see fewer nibs and less texture correction. That saves time in the buffing stage and reduces rework.

Safeguarding Your Equipment and Booth Longevity

Clogged or restrictive filters increase static pressure, which can cause overheating of fan motors and lead to burner short cycling. Overspray that escapes exhaust capture can bake onto ductwork and fans, causing imbalance and necessitating additional maintenance work. Correct media and timely changes protect bearings, belts, heat burners, and controls. Over a year, that can eliminate surprise breakdowns. It also keeps energy use closer to design levels.

Maintaining Optimal Airflow and Pressure for Consistent Performance

Record a baseline magnehelic reading with clean filters and a clean booth. As pressure rises from that baseline, you’ll see patterns in flash and spray behavior. Changing filters at a set pressure threshold—not only by time—keeps jobs consistent. This approach works across seasons and product mixes. Consistency is how you keep cycle times tight.

The Financial Implications of Poor Filtration: Hidden Costs and Rework

Every defect adds labor, materials, and booth time. Add in energy waste from high pressure and wear on motors and burners, and costs climb fast. A proper install and smart schedule cost less than redoing even a small percentage of jobs. The payoff shows up in first-pass yield. That’s where profit lives.

When to Change Your Filters

Use both visual cues and gauge readings. If the media is dark and loaded, if the draw feels weak, or if the pressure exceeds your threshold, it’s time. Tie changeouts to spray hours when you can. Heavy primer workloads filter faster than light topcoats. Your schedule should reflect your real workload and climate.

Visible Cues and Performance Indicators of Clogged Filters

Look for dark, matted media, especially near seam lines. Watch for uneven draw across banks—strong at the center and weak at the edges is common. Rising pressure drop and longer flash times are clear signs. More dust nibs or overspray settling on floors point to poor capture. Any burner trouble after spray often ties back to airflow.

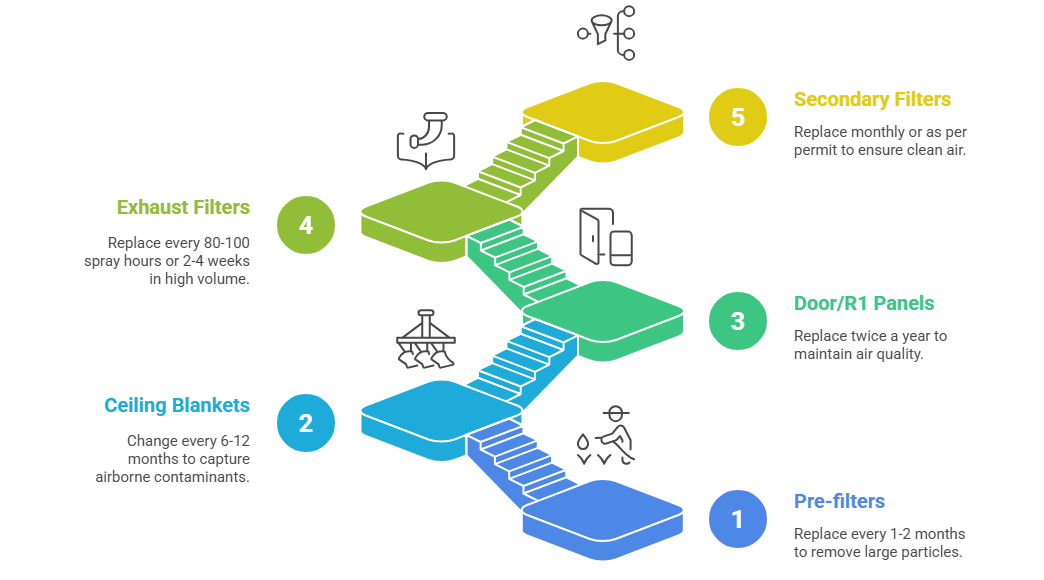

Establishing a Proactive Maintenance Schedule for Your Paint Booth

As a starting point: pre-filters every 1–2 months; ceiling blankets every 6–12 months (twice a year in dusty or high-pollen areas); door/R1 panels about twice a year; exhaust Filter every 80–100 spray hours or 2–4 weeks in high volume; secondary/bag/carbon monthly or per your permit. Mark the installation dates on each bank. Adjust the cadence to your pressure data, not just the calendar.

Pre-Installation Checklist: Setting Up for Flawless Success

Plan your changeout when the booth is cool and empty. Verify sizes and counts before you start—one missing panel creates a bypass. Stage tools, PPE, and bags for waste to prevent tracking debris. Have a vacuum with a brush attachment ready. Keep a log sheet for before/after pressure readings.

Gathering Your Essential Tools and Replacement Air Filters

You’ll need the correct media, sharp shears for roll stock, a plastic scraper, a vacuum, rags, and a mild cleaner. Bring labels or a marker for dating each bank. A step ladder or lift helps with ceiling blankets. Have spare clips and gaskets on hand, as worn hardware is a common cause of bypass. Keep trash bags nearby to seal used media immediately.

Prioritizing Safety Gear and Protocols Before You Begin

Use gloves, eye protection, and a dust mask or respirator. Lockout/tagout fans and heat and let hot parts cool fully. Remove ignition sources and use non-sparking tools around overspray buildup. Follow your hazardous waste policy for handling used filters. Keep traffic out of the booth during the swap.

Conducting an Initial Booth Inspection and Cleaning Preparations

Check frames and retainers for bends or broken tabs. Inspect gaskets; replace if they’re flattened or missing. Vacuum plenums, tracks, and screens so that new media seats flat. Note the current magnehelic reading to compare later. Clean the light lenses and grates to prevent dust from being released after the change.

Your Step-by-Step Guide to Flawless Filter Installation

Work methodically from clean intake areas toward exhaust. Keep the media clean—don’t drag it across dusty surfaces. Fill every cell and close every seam. If a piece doesn’t seat, fix the frame or cut a square replacement. Don’t force a misfit; it will leak.

Step 1: Power Down and Safely Access Filter Compartments

Shut off the booth, fans, and burners, then lockout/tagout. Open access doors and remove retainers per your booth’s design. If you’re working overhead, use a stable platform. Keep hardware in a tray so nothing gets lost. Confirm no air movement before you proceed.

Step 2: Carefully Remove and Dispose of Old Filters

Lift panels straight out to avoid knocking debris loose. For blankets, roll them inward as you remove them. Bag used media immediately to contain dust and overspray. Keep stages in order if you’re documenting wear patterns. Move waste to the designated holding area as you go.

Step 3: Thoroughly Clean the Filter Plenum Box and Surrounding Areas

Vacuum frames, screens, and tracks. Wipe contact edges so gaskets and media sit flush. Gently scrape cured overspray ridges that prevent a tight seal. Don’t leave loose debris that can blow into fresh paint. A clean seat is the foundation of a leak-free install.

Step 4: Installing New Intake Filters with Precision for Optimal Air Quality

Confirm airflow arrows point into the booth if marked. Seat each panel flat with uniform gasket contact—no bowing or crushed corners. For R1 panels, orient the internal wire frame as specified by the manufacturer. Avoid stretching media; it should be snug, not stressed. Check for consistent seam pressure along the perimeter.

Step 5: Airflow and Diffusion Media Performance

Lay blankets in sequence, keeping seams minimal and straight. Use factory clips or retainers at the spacing recommended for your booth. Smooth wrinkles; they create turbulence and dust traps. Seal the perimeter so air can’t bypass. Work clean—avoid touching media with dusty gloves.

Step 6: Installing New Exhaust Filters to Capture Overspray

Match pad or roll media to the bank orientation (wall, side, or floor). Cut square edges; ragged cuts create leak paths. Fill every frame—no empty cells or partials. If using multi-stage exhaust, install in the correct order with contact between layers. Verify frames latch securely without bowing the media.

Step 7: Re-secure All Components and Close Up the Booth

Reinstall screens, grates, and any light lenses. Close and latch service doors and hatches. Remove tools, waste, and rags from the booth. Wipe down traffic areas to avoid stirring dust later. You’re ready for verification.

Post-Installation Verification and Optimization

Start with ventilation only and watch the gauge. Compare to your clean-filter baseline. If pressure is unusually high or low, stop and recheck seating. A quick smoke test at seams catches bypass early. A short test spray confirms even diffusion and capture.

Restoring Power and Conducting an Initial Airflow Check

Remove lockout/tagout and start fans on vent. Record the new pressure reading and annotate your log with media types installed. Listen for unusual fan sounds that might indicate obstruction or imbalance. Check door seals for proper closure. Stable readings close to baseline indicate a good install.

The Smoke Test: Identifying and Preventing Air Bypass

Introduce a small, visible smoke near seams and perimeters. Smoke should pull through the media, not around it. If you see bypass, reseat clips, replace a bent frame, or add the proper gasket—not tape unless specified. Retest until all seams draw correctly. This simple step prevents most dust complaints.

Performing a Test Spray and Assessing Paint Job Quality

Spray a test panel with your standard setup. Look for an even overspray pattern and consistent flash across the surface. Inspect for nibs or unexpected texture. If issues appear, focus first on ceiling seams and exhaust draw patterns. Minor adjustments now save full-job headaches later.

Monitoring Pressure and Burner Performance for System Harmony

Switch to heat/cure and observe burner light-off and cycling. Short cycling or flame faults can point to airflow restrictions. Note the heated-pressure reading as a second baseline. If numbers drift after a few jobs, recheck exhaust seating and intake seams.

Troubleshooting Common Installation Hiccups and Solutions

Most issues trace back to sizing, seating, or leftover debris. Start with frames and gaskets, then move on to media orientation. Use your gauge to guide the fix. Make one change at a time and retest so you know what solved it.

Filters Not Seating Correctly: Addressing Gaps and Air Bypass

Clean frames and remove hardened overspray ridges. Confirm you’re using the exact cut size and thickness the frame was designed for. Replace worn clips and perimeter gaskets. If a frame is bent, repair or replace it—don’t force the media to compensate, re-smoke-test after each adjustment.

Unexpected Airflow Issues or Unusual Noises Post-Installation

Check that airflow arrows face the correct direction and that no protective film remains on the media. Verify that all doors and access panels are latched. Inspect fan belts and look for objects left near the wheel. If pressure is much higher than baseline, the media may be too restrictive for your system.

Difficulty Removing Stubborn Old Filters

Use a plastic scraper and a light mist of cleaner to loosen buildup without gouging the frame. Vacuum often so debris doesn’t migrate. If fasteners are seized, replace them rather than prying against the frame. Don’t install new media into a damaged or dirty channel.

Dust After a Filter Change

Re-run the smoke test along all seams and edges. Inspect pre-filters; overloaded pre-stage media can shed dust. Review booth housekeeping—floors, suits, tack rags, and staging areas. Confirm that intake and exhaust banks are both fully populated—one missing cell will undo the rest.

Choosing the Right Replacement Filters for Optimal Performance

Match media to your coatings and volume, not just cost. Heavy primers and high-solids loads need higher-capacity exhaust media. Odor control requires a carbon stage placed after particulate capture. Always balance efficiency with starting pressure to protect airflow.

Matching Filter Type and Media for Specific Paint Types and Applications

High-build primers load exhaust faster, so polyester or multi-stage banks help. For frequent color changes and fine finishes, higher-efficiency intake media supports cleaner air. If solvent odors are an issue, carbon can help after particulate capture. Keep your system within its designed pressure range as you upgrade media.

Decoding Filter Efficiency Ratings for Superior Particle Capture

Higher capture efficiency reduces fine dust in the booth and on panels. But high efficiency often brings higher initial resistance. Review the manufacturer data to pick media that your fans can handle. Track the new baseline pressure so you know what “good” looks like with that media. Adjust the change intervals to the new curve.

The Importance of Correct Size and Fit

Measure the opening, not the old media. A ¼-inch gap is enough to cause bypass. Frames, clips, and gaskets are built for specific thicknesses—don’t mix and match without checking fit. If you need custom cuts, ensure square edges and consistent dimensions by test—fitting one piece before opening all the boxes.

When to Consult a Professional Service Technician or Service Team

Call in a pro if pressure won’t stabilize, burners short-cycle, or frames are damaged. A technician can check fan performance, gas train, and control settings under load. They can also recommend media that fits your airflow capacity. Early help prevents extended downtime.

Long-Term Filter Management

A simple, ready plan keeps your booth predictable. Tie changes to spray hours, product mix, and pressure thresholds. Keep spare media and hardware on-site. Review results monthly and adjust intervals. Small changes here keep the first-pass yield high.

Developing a Comprehensive and Proactive Filter Maintenance Schedule

Start with the baseline intervals, then tune them using your gauge and job volume. Add seasonal notes—pollen, humidity, and dust change loading. Schedule inspections for frames and gaskets with every change. Keep a spare set of clips and seals in stock. Document what works so the whole team follows the same process.

The Benefits of Regular Filter Monitoring and Timely Replacement

You’ll get steadier airflow, fewer defects, and less equipment stress. Energy use stays closer to design levels. Maintenance becomes planned, not reactive. Painful surprises—like fan failures and burner faults—drop off. The result is smoother scheduling and happier customers.

Tools and Techniques for Tracking Filter Life and Performance

Log magnehelic readings daily and after every change. Use a simple hours counter, job tracker, or booth timer to estimate spray hours. Label each bank with the install date and the target change date. Take quick photos of loaded media to compare over time. These small steps make trends obvious.

Responsible Disposal of Used Filters

Used overspray media may be regulated depending on what you spray. Handle and store them so they don’t shed dust or pose a fire risk. Keep disposal areas tidy and away from ignition sources. Document change dates and volumes if your policy requires it. When in doubt, ask your waste provider.

Understanding Local Regulations for Paint-Laden Filter Waste

Rules vary by location and by coatings used. Some filters can go as industrial waste; others require special handling. Keep SDS sheets on hand to guide decisions. If you use solvent-borne products, plan for stricter control. The goal is safe handling without surprises during audits.

Best Practices for Safe and Environmentally Sound Disposal

Bag and seal used filters as soon as you remove them. Store them in a designated container with a lid until pickup. Don’t compact or crush media unless your provider allows it. Keep records of pickups if required. Work with licensed handlers to stay compliant and protect your team.

Proper Installation for New Paint Booth Filters

A flawless finish starts with clean, steady airflow—so pick the right filter media, install it carefully (tight fit, sealed seams, correct orientation), and keep the booth clean as you work. After installation, verify: record a pressure baseline, run ventilation to compare readings, smoke-test seams to catch bypass, and do a quick test spray to confirm even diffusion and capture.

Maintain filters by data, not just dates: track magnehelic readings and spray hours, change stages before pressure spikes, and document what you install and when. This routine cuts nibs and rework, keeps flash times predictable, reduces energy use and equipment wear, and helps you stay compliant with safe, bagged disposal—protecting finish quality, uptime, and profit.
